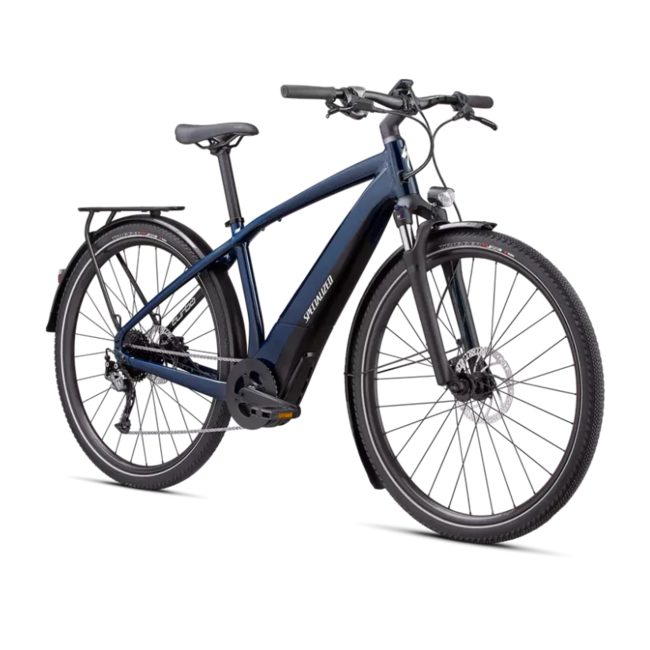

2021 Turbo Vado 3.0

$4,499.99 was $5,800.00
In stock

If you can characterize your life as on-the-go, busy, or not having enough time, we made a bike for you—the Turbo Vado 3.0.

Drop us a line using the button below to order this product, enquire about stock availability or find out more about this product.

Enquire about this product

Full description

FEATURES

If you can characterize your life as on-the-go, busy, or not having enough time, we made a bike for you—the Turbo Vado 3.0. It's made to accommodate busy lives that are always in movement, which is why we took our award-winning pedal-assist technology and accelerated it well into the future.

Beginning with the integrated Specialized 1.2 E motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 E uses the same hardware as our 1.2 motor, but it features a tune that prioritizes efficiency. This means less peak torque and maximum output. Of course, it still features a near-silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill at, say, a traffic light both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations.

For the Vado 3.0, we developed a custom Specialized U1-460 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city. If you wish to see exactly how far you can go on a charge, have a look at our Turbo Range Calculator for more exact estimates.

The new Turbo Connect Display (TCD) is the best way to view data on your Turbo. It not only displays basic ride metrics (speed, cadence, power, battery level, and time), but it also lets you toggle between modes. Its design, meanwhile, is rugged and clean, and it has multiple mounting options for either road or mountain setups. As for the latest version of the Mission Control App, you'll find that it now has more features and is even more intuitive to use. It lets you custom-tune nearly every aspect of the bike with ease, monitor your power usage, control your range, perform basic system diagnoses, and record/upload rides.

To top off all of the innovative features, we chose a worry-free spec that features Shimano 9-speed components, hydraulic disc brakes, front/rear lights, and fender & rack mounts.

  • The Turbo Vado features a lightweight alloy frame that’s been designed with our Fitness/Transportation Geometry.
  • The Turbo Vado’s Specialized 1.2 E motor emphasizes efficiency and range. We also fully integrated it with the frame, and it's been custom-tuned for city riding. It intuitively reacts to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
  • We made the custom 460 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.

BIKE SPECS

Frame: E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Fork: SR SunTour MOBIE30, custom crown, steel steerer, 9mm open dropout, 50mm of travel
Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Tape: Specialized Body Geometry Contour, lock-on
Handlebars: Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Saddle: Specialized Canopy Sport, steel rails, 155mm
Front Brake: Tektro HD-T275, hydraulic disc, 180mm
Rear Brake: Tektro HD-T275, hydraulic disc, 160mm
Rear Derailleur: Shimano Alivio, Shadow Design, SGS cage, 9-speed
Shift Levers: Shimano Alivio, 9-speed w/ Optical Gear Display
Cassette: Shimano CS-HG200, 9-speed, 11-36t
Chain: KMC e9T, 9-speed w/ Missing Link™
Crankset: Custom alloy forged crankarms
Pedals: Specialized Commuter w/ grip tape & reflectors
Rims: 700C disc, double-wall alloy, pinned, no eyelets
Rear Hub: Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub: Specialized 6-bolt disc, ball bearings, 9x100mm spacing, 32h
Spokes: DT Swiss Industry
Front Tire: Trigger Sport Reflect, 700x47c
Rear Tire: Trigger Sport Reflect, 700x47c
Seat Post: Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Inner Tubes: Standard 40mm PV 700x32-50
Seat Binder: Alloy, bolt-type, 34.9mm
Motor: Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal
UI/Remote: Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages
Battery: Specialized U1-460, On/Off button, state of charge display, 460Wh
Charger: Custom Specialized 42V2A Charger w/ Rosenberger plug, AC power cord included
Wiring Harness: Custom Specialized harness
Headlight: Herrmans MR4 e-Bike, stainless bracket for suspension fork, 6V
Taillight: Herrmans H-Trace Mini e-Bike, 220-degree visibility, fender-mount
Kickstand: Specialized kickstand, 40mm mount
Rack: Turbo Rack, Closed Platform, direct fender mount, Racktime-compatible
Fenders: DRYTECH fenders, 52mm width, stainless steel fenderstays
Bell: Simple bell


GEOMETRY

  S M L XL
Crank Length 170mm 170mm 175mm 175mm
Handlebar Width 680mm 680mm 680mm 680mm
Stem Length 60mm 75mm 75mm 90mm
Saddle Width 155mm 155mm 155mm 155mm
Seatpost Length 300mm 350mm 400mm 400mm
Stack 619mm 619mm 629mm 652mm
Reach 396mm 406mm 428mm 441mm
Seat Tube Length, BB Center to Top Vertical 400mm 450mm 500mm 550mm
BB Drop -70mm -70mm -70mm -70mm
Chainstay Length 478mm 478mm 478mm 478mm
Head Tube Angle 70° 70° 70° 70°
Fork Rake 44mm 44mm 44mm 44mm
Trail 86mm 86mm 86mm 86mm
Front Centre 647mm 657mm 682mm 704mm
Wheelbase 1116mm 1126mm 1152mm 1173mm
Standover Height 762mm 800mm 833mm 875mm
Head Tube Length 135mm 135mm 145mm 170mm



Size Chart
