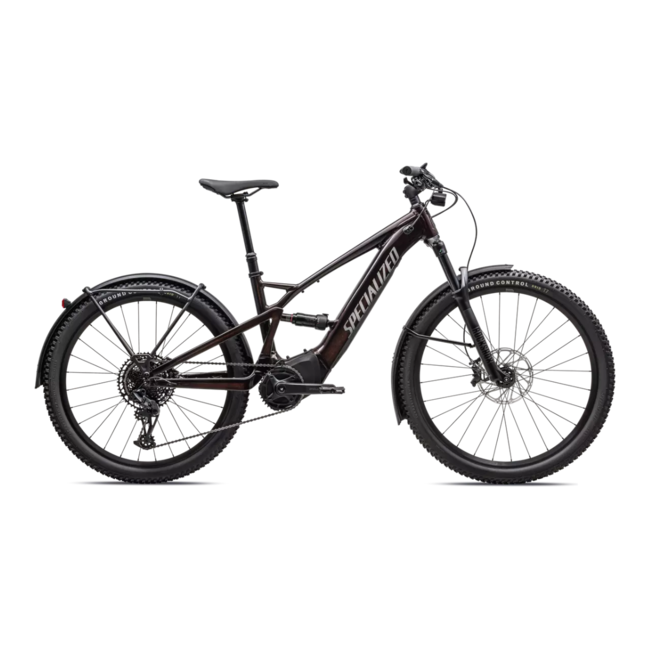

2023 Turbo Tero X 5.0
Full description
Description
POWERFUL: Pedal beyond the map with the seamless performance of the Specialized Full Power 2.0 motor and the Turbo Operating System. The Specialized Full Power 2.0 motor has been tested against the most rugged terrain, in the harshest conditions, to ensure the highest quality experience. An intelligent e-bike operating system that seamlessly integrates our fully custom, purpose-built software and hardware so you can ride farther and explore more than ever before. What’s more, the MasterMind display provides instant tunability right at your fingertips while keeping an eye on the built-in range estimator to ensure you’re hitting maximal range and ride time. Plus, the MasterMind display seamlessly integrates with the Specialized app to enable integrated range optimization tools, advanced tuning, on-ride diagnostics, and more.
SMOOTH: The pothole-eating, bump-smoothing, rock-flattening confidence, comfort, and control built into the Tero X tame the most rugged terrain. Thanks to ample front and rear suspension, a performance-minded upright riding position, our world-renowned Ground Control tires, and the confidence of a dropper seatpost, we’ve made it easier than ever to explore rough routes with confidence.
VERSATILE: Ride beyond the horizon with everything you need. The Tero X is equipped with up to 1,000 lumens of headlight power, up to 22 lumens of rear light illumination, and an integrated rear rack that safely carries up to 20kg of adventure gear. Oh, and did we forget to mention the extra front rack for 10kg of additional on-bike storage? Sounds like any ride is a bright idea
The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.
- Specialized Full Power 2.0 Motor with 70Nm of torque and a 710Wh Battery deliver incredible, seamless pedal assistance and long lasting-battery life. With a ride-anywhere range, go up to 86 miles (140 km) or 6.5 hours on a single charge (eco mode).
- Specialized app and MasterMind display allow you to tailor Tero X’s power output levels to your desired riding preference.
- Specialized app gives you added security by allowing you to disable the motor and activate the motion sensor alarm with Turbo System lock.
- 130/120mm of full suspension. Lock-out equipped RockShox 35 Silver fork and a RockShox Deluxe Select R shock provide confidence, comfort, and control.
- Dropper seat post helps you stay in control during the rocky parts while making it easier to get your foot down when coming to a stop.
- DRYTECH stainless steel fenders ensure that no matter the adventure, you always arrive fresh.
- World-renowned Ground Control Grid T7 tires for unsurpassed traction.
- Rear rack with side pannier rails provide 20kg carrying capacity. Also compatible with the Front Rack and Adventure Plate for an additional 10kg of capacity.
- Integrated Lezyne Super E600 front light with 600 lumens and Lezyne Fender rear light.
- For optimal ride control, the Tero X features a front and rear wheel combination of 29”/27.5”, also known as a mullet setup, in all sizes except the S. The S features 27.5”/27.5” front and rear wheel combinations.
Specifications
- Seat Binder: Alloy, 38.6mm
- Frame; E5 Aluminum, full suspension, mullet style for M-XL, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
- Fork: RockShox 35 Silver TK, lockout, 130mm, fender mounts
- Rear Shock: RockShox Deluxe Select R, rebound adjust, 45x190mm
- Saddle: Bridge Sport, Steel rails, 155mm
- Grips: Specialized Body Geometry Contour, lock-on
- Stem: Specialized Stealth Stem, alloy, 14 deg, 31.8mm, 75mm length, integrated TCD mount
- Handlebars: Specialized Trail, Alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S: 720mm, M-XL: 750mm
- SeatPost: TranzX dropper, infinite adjustable, two-bolt head, bottom mount cable routing, Handlebar remote, 34.9mm, S: 150mm, M: 170mm, L/XL: 200mm
- Rear Brake: Sram Code R, 4-piston caliper, hydraulic, 180mm rotor
- Front Brake: Sram Code R, 4-piston caliper, hydraulic, 200mm rotor
- Crankset: Praxis forged M30, custom offset
- Rear Derailleur: SRAM GX Eagle, 12-speed
- Shift Levers: SRAM GX Eagle, trigger, 12-speed, single click
- Chain: SRAM NX Eagle, 12-speed
- Cassette: SRAM NX Eagle PG-1230, 12-speed, 11-50t
- Chainrings: Sram X-Sync Eagle, 104BCD, 38T, EMTB specific, steel
- Rear Hub: Specialized alloy, disc, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 28h, HG Freehub
- Spokes: DT Swiss Industry
- Rear Tire: Ground Control Grid T7, 2Bliss Ready, 27.5x2.35
- Rims: Roval Traverse, hookless alloy, 30mm inner width, tubeless ready
- Front Tire: Ground Control Grid T7, 2Bliss ready, S: 27.5x2.35, M-XL: 29x2.35
- Front Hub: Specialized alloy, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
- Inner Tubes: Standard 40mm PV 29/27.5x1.75-2.4
- Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
- Wiring Harness: Custom wire harness
- UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
- Motor: Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
- Battery: Specialized U2-710, alloy casing, state of charge display, 710Wh
- Taillight: Lezyne EBIKE FENDER REAR STVZO, wide light spread, 12V
- Headlight: Lezyne EBIKE SUPER STVZO E600, 600 Lumen, 12V, Stem mounted
- Pedals: Specialized Commuter w/ grip tape & reflectors
- Fenders: Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays
- Rack: Specialized Pannier-rack, alloy tubing, max. 20kg load
- Bell: Specialized brass bell
- Kickstand: Specialized kickstand, 40mm mount
-
Geometry
S M L XL Crank Length 165 170 170 170 Handlebar Width 720 750 750 750 Stem Length 75 75 75 75 Saddle Width 155 155 155 155 Seatpost Length 150 170 200 200 Stack 610 626 644 658 Reach 439 468 490 509 Head-Tube Length 135 115 135 150 Head-Tube Angle 67 67 67 67 B-B Height 335 335 335 335 B-B Drop to front 23 41 41 41 Trail 115 118 118 118 Fork Length (full) 521 540 540 540 Fork Rake/Offset 37 42 42 42 Front-Center 735 770 799 824 Chain-Stay Length 460 460 460 460 Wheelbase 1195 1228 1258 1282 Top-Tube Length (horizontal) 570 602 637 666 Bike Stand-Over Height 726 726 740 740 Seat-Tube Length 380 400 420 440 Seat-Tube Angle 78 78 77 77Zz
