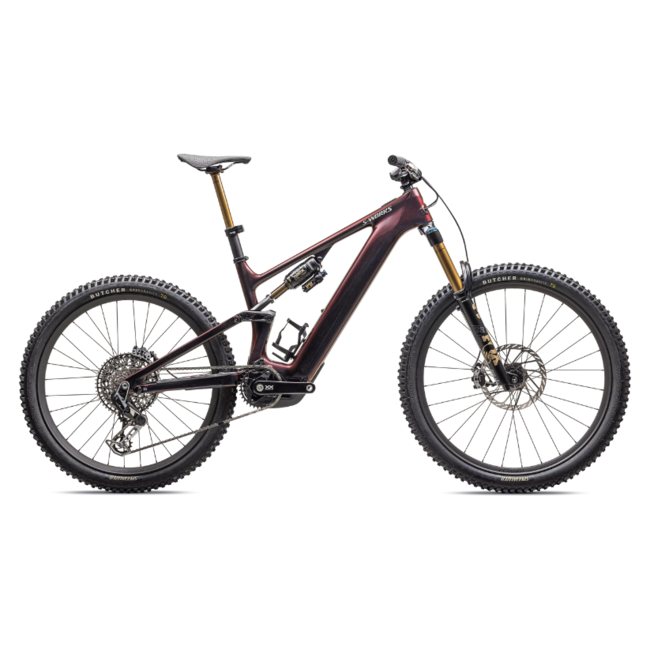

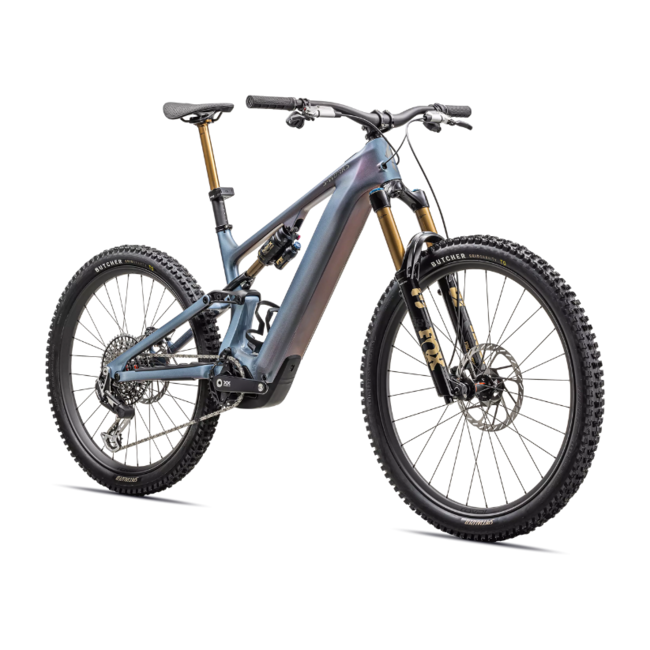

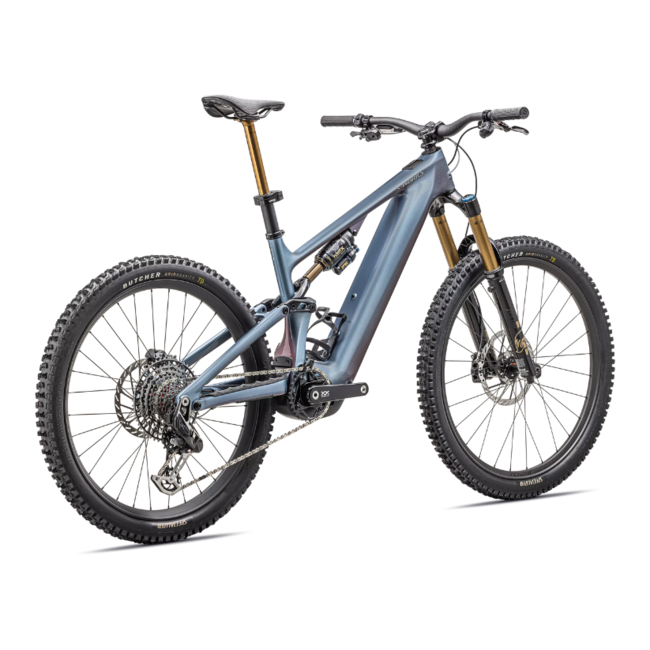

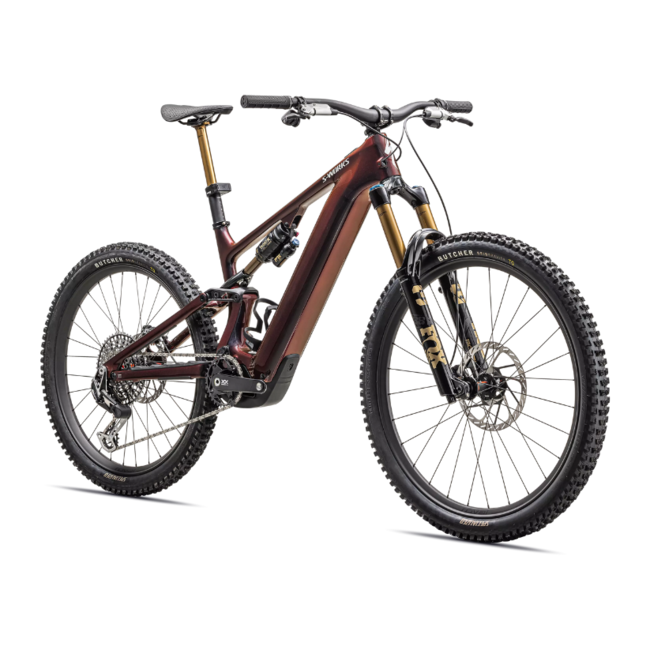

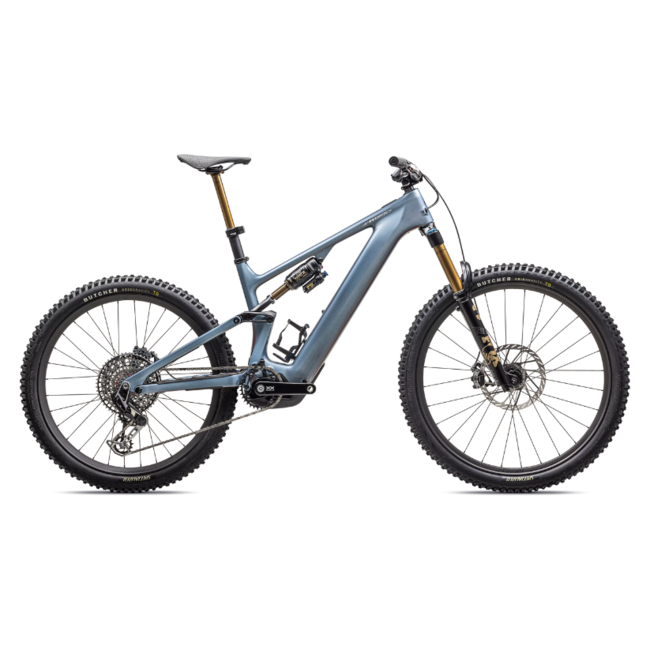

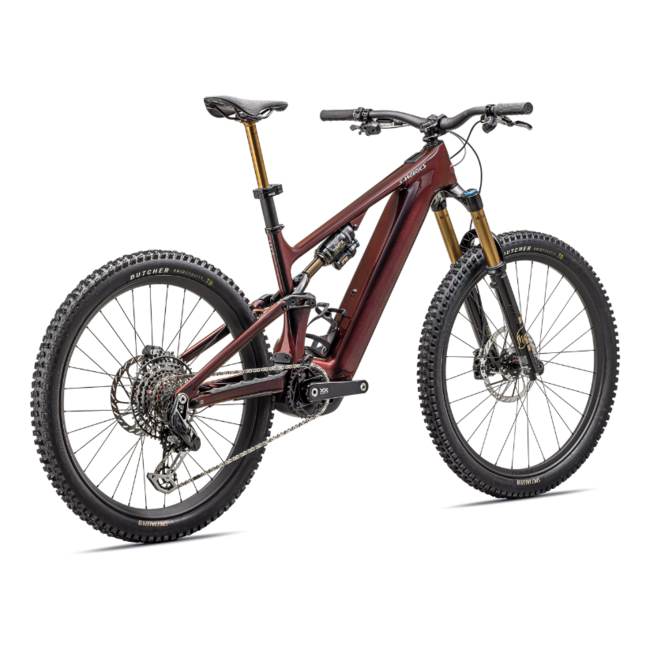

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Â
TECHNICAL SPECIFICATIONS
E-bike
- UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
- Motor: All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
- Battery: 840wh battery
Frameset
- Seat Binder: Alloy, 38.6mm
- Frame: All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Suspension
- Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
- Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Brakes
- Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
- Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
- Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers: SRAM AXS POD ULTIMATE with DISCRETE CLAMP
- Cassette: SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
- Crankset: SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
- Rear Derailleur: SRAM XX Eagle Transmission Derailleur
- Chain: SRAM XX EagleTransmission Flattop Chain
Wheels & tires
- Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
- Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
- Inner Tubes: Standard, Presta Valve
Cockpit
- Grips: Deity Lockjaw grips
- SeatPost: FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm
- Handlebars: RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
- Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length
- Saddle: Specialized Power Pro Mirror w/hollow Ti rails
Accessories
- SWAT: SWAT internal downtube storage
Product details
- Product ID: 218698
- Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight: 23.68kg (52 lb, 3.3 oz)
- Weight Size: S4
