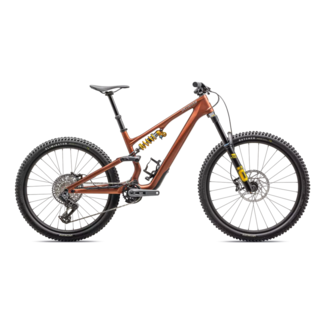

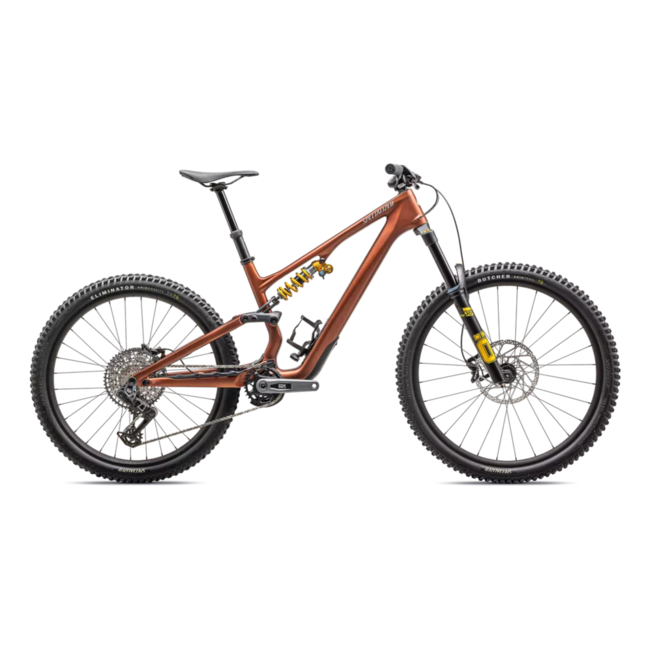

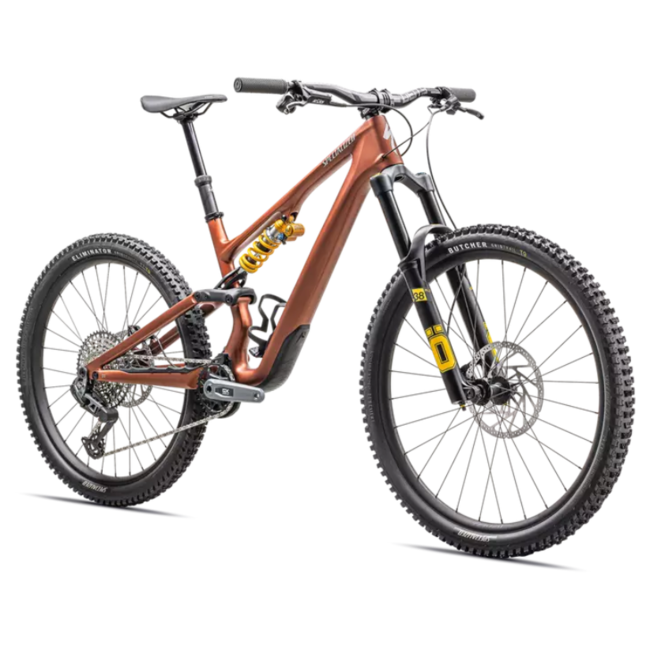

2025 Stumpjumper 15 Ohlins Coil
$12,500.00 Incl. tax
Add to cart
2025 Stumpjumper 15 Ohlins Coil
Specialized
(0)

2025 Stumpjumper 15 Ohlins Coil

$12,500.00 Incl. tax
In stock

Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Short-travel control, playfulness, and efficiency? How about geo personalization to make it perfect for you? Check, check, check. Read more.

Product description

Description

Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.

MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.

  • Lightweight FACT 11m carbon chassis and rear-end
  • Incredibly tough Roval Traverse wheels with DT Swiss 370 hub
  • Premium suspension support from an Öhlins TTX 22 M Coil, Ride Dynamics tuned
  • Plow through anything with a 160mm Öhlins RXF38 M.2 29 fork
  • Reliable and smooth shifting from SRAM GX Eagle AXS T-Type drivetrain
  • Powerful brakes with great hand feel thanks to TRP DH-R EVO 4-piston brakes
  • Adjustable travel PNW LOAM dropper post
  • Lifetime replacement of suspension pivot bearings to the original owner
  • Compatible with electronic drivetrains only

Specifications

FRAMESET
SWAT: SWAT 4.0 internal downtube storage
Frame: FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder: Alloy, 38.6mm
SUSPENSION
Fork: Öhlins RXF38 M.2 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 15x110mm, 44mm offset, 160mm of travel
Rear Shock: Öhlins TTX 22 M Coil, Ride Dynamics trail tune, external rebound adjust, external high and low speed compression adjustment, 210x55, S2: 434lbs, S3: 480lbs, S4: 525lbs, S5: 571lbs, S6: 605lbs
COCKPIT
Saddle: Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
Stem: Deity, 35mm clamp, 35mm length
Grips: Diety, Supracush, Black
Handlebars: Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise; S3-S6: 38mm rise
SeatPost: PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
BRAKES
Front Brake: TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm
Rear Brake: TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm
DRIVETRAIN
Chain: SRAM GX Eagle Transmission Flattop Chain
Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Bottom Bracket: SRAM DUB, BSA 73mm Wide, Threaded
Shift Levers: SRAM AXS POD Controller
Crankset: SRAM GX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
Rear Derailleur: SRAM GX Eagle Transmission Derailleur
WHEELS & TIRES
Rims: Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5
Front Hub: DT Swiss 370, 15x110mm, 28h
Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Hub: DT Swiss 370, 12x148mm, 32h
Rear Tire: Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes: Sapim Force
Inner Tubes: Standard, Presta valve
PRODUCT DETAILS
Weight: 15.30kg (33 lb, 11.7 oz)
Weight Size: S4

Geometry

  S2 S3 S4 S5 S6
Crank Length 165 165 170 170 170
Handlebar Width 810 810 810 810 810
Stem Length 35 35 35 35 35
Saddle Width 155 143 143 143 143
Seatpost Length 150 170 200 200 200
Stack 621 630 644 657 671
Reach 420 445 470 495 525
Headtube Length 100 110 125 140 155
Headtube Angle 64 64 64 64 64
BB Height 340 340 340 340 340
BB Drop 35 35 35 35 35
Trail 134 134 134 134 134
Fork Length (full) 573 573 573 573 573
Fork Rake/Offset 44 44 44 44 44
Front Center 755 785 816 848 884
Chainstay Length 432 432 432 442 442
Wheelbase 1186 1216 1247 1288 1325
Top-tube Length (horizontal) 574 596 625 649 678
Bike Standover Height 751 745 745 745 751
Seat Tube Length 385 405 425 445 465
Seat Tube Angle 76.5 76.5 76 76 76
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 245 255 255 285 285
Min Seatpost Insertion 80 80 80 80 80
