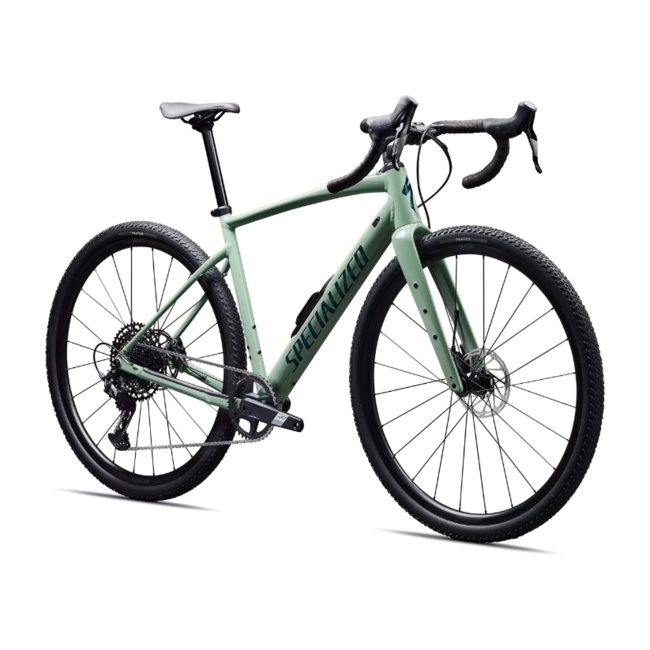

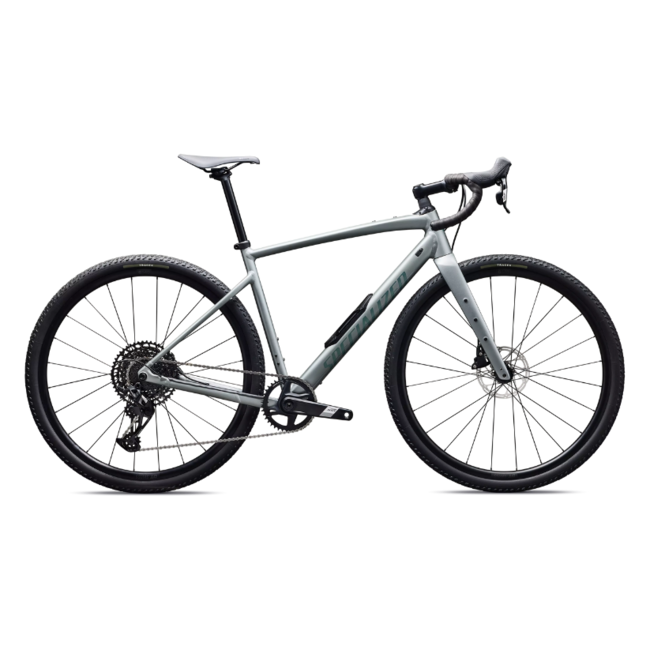

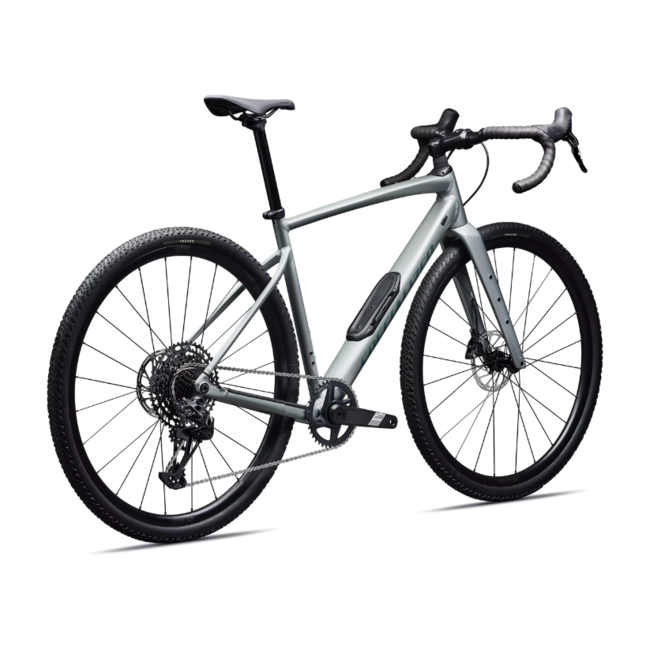

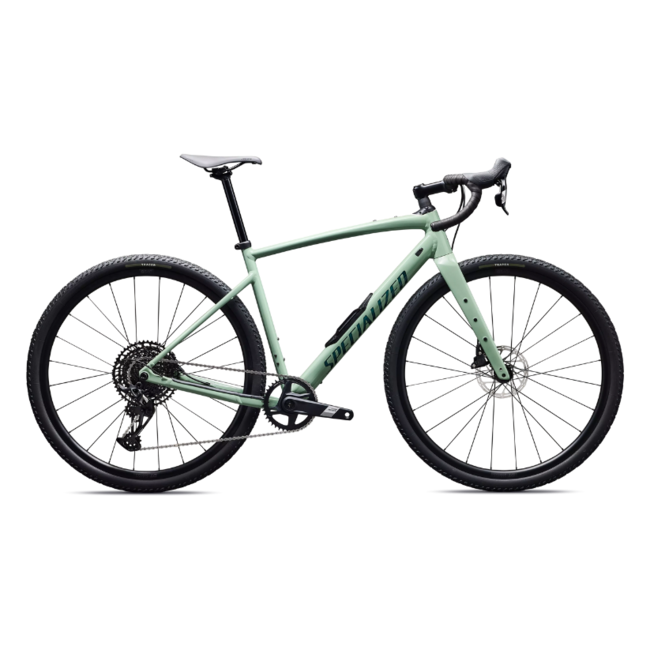

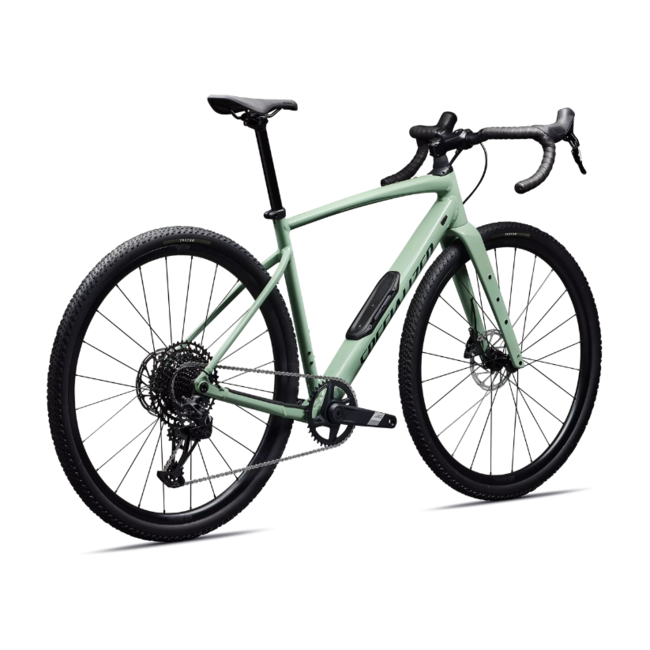

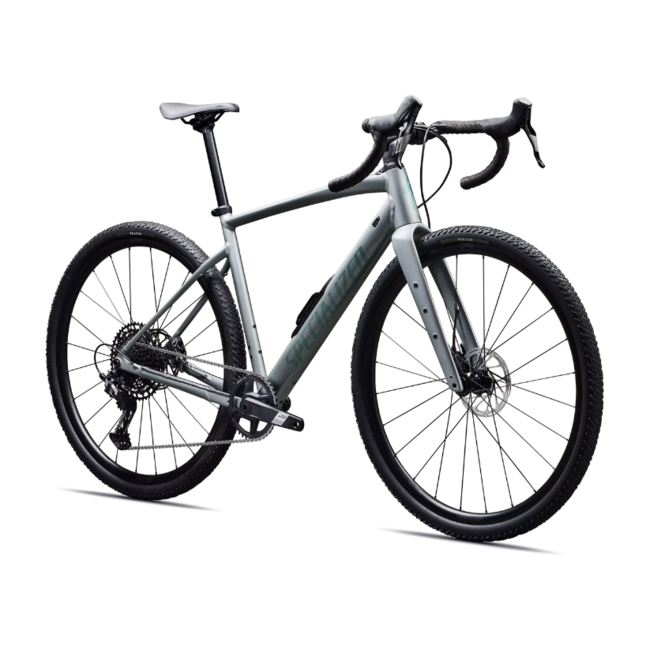

Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
FEATURES
Use: Gravel Adventure/Race
Frameset: E5 Premium Alloy
Suspension: Future Shock 3.1
Drivetrain/Wheels: SRAM Apex Eagle 1x12 / DT G540
Weight: Diverge Alloy Comp: 10.6kg
TECHNICAL SPECIFICATIONS
Frameset
- Frame: Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork: Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake: SRAM Apex, Hydraulic disc
- Rear Brake: SRAM Apex, Hydraulic disc
Drivetrain
- Shift Levers: SRAM Apex
- Crankset: SRAM Apex DUB Wide, 40t
- Rear Derailleur: SRAM Apex Eagle 12-speed
- Bottom Bracket: SRAM DUB BSA 68 Wide
- Chain: SRAM NX Eagle, 12-speed
- Cassette: SRAM PG-1210 Eagle, 11-50t
Wheels & tires
- Front Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Inner Tubes: Presta, 700x32-50mm
- Front Tire: Tracer 700x45, Tubeless Ready
- Rear Tire: Tracer 700x45, Tubeless Ready
Cockpit
- SeatPost: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
- Seat Binder: Alloy, 30.8mm
- Saddle: Body Geometry Power Sport, steel rails
- Stem: Future Stem, Comp
- Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Tape: Supacaz Suave
Accessories
- SWAT: SWAT 3.0 internal downtube storage
Product details
- Product ID: 223512
Weight
- Weight: 10.6 kg (23 lb, 5.9 oz)
- Weight Size: 56
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
