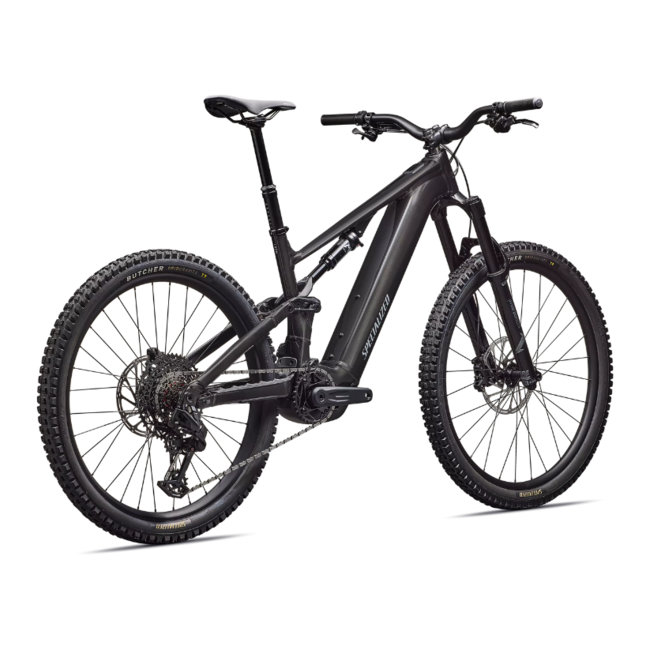

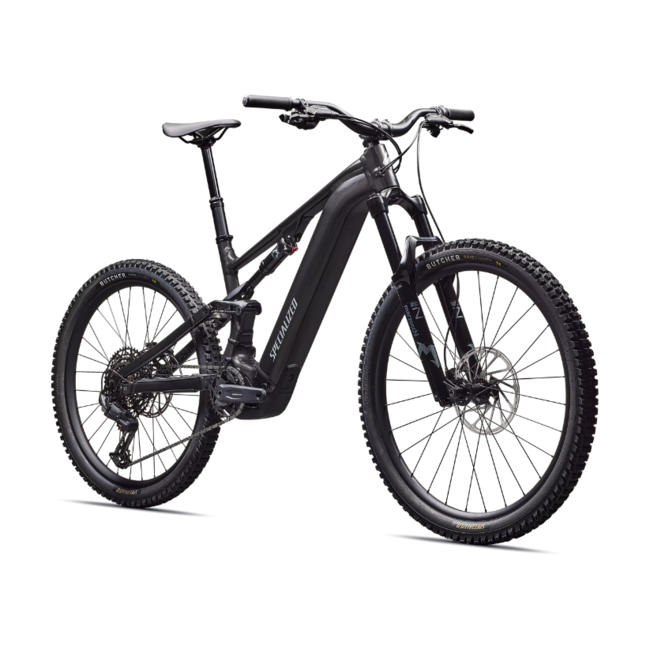

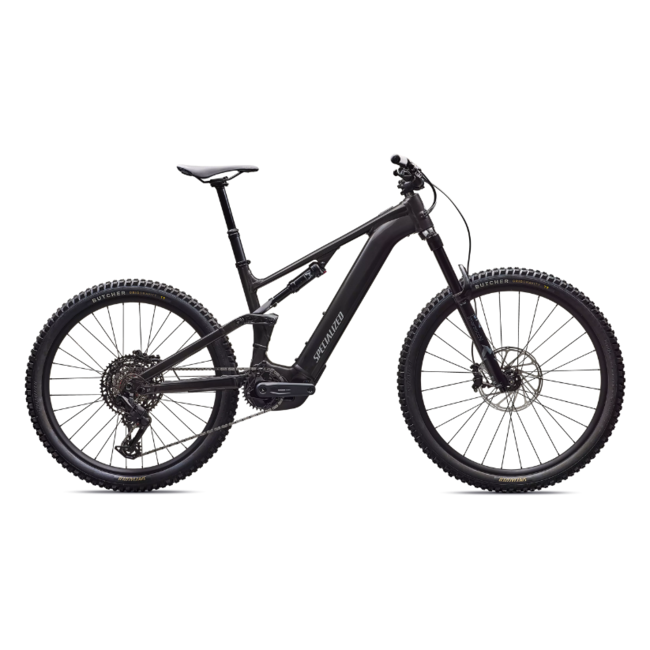

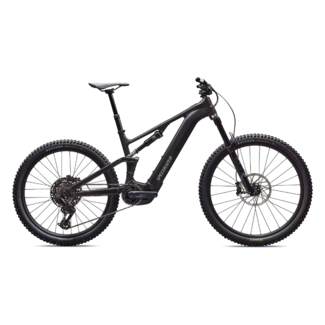

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
TECHNICAL SPECIFICATIONS
E-bike
- UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Motor: All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
- Charger: Specialized 4amp charger
- Battery: 840Wh battery
Frameset
- Seat Binder: Alloy, 38.6mm
- Frame: All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension
- Rear Shock: *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
- Fork: Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
- Front Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
- Rear Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
- Cassette: XS-1270, 12-speed, 10-52t
- Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
- Chain: SRAM Eagle 70 T-Type Flattop Chain
- Rear Derailleur: SRAM Eagle 70 T-Type
- Shift Levers: SRAM 70 trigger, 12-speed, single click
- Crankset: SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
- Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Spokes: DT Swiss Industry
- Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes: Standard, Presta valve
Cockpit
- Stem: Alloy Trail Stem, 35mm bar bore
- Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
- Saddle: Body Geometry Bridge Saddle, steel rails
- Grips: Specialized Trail Grips
- SeatPost: TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
- SWAT: SWAT internal downtube storage
Product details
- Product ID: 221347
- Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight: 26.08 kg (57 lb, 7.8 oz)
- Weight Size: S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
