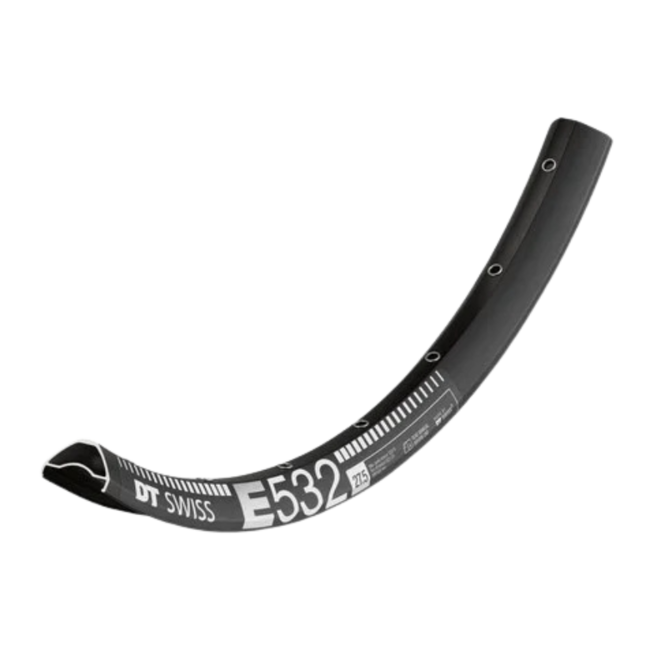

Bringing wide profiles to the most demanding enduro riders, both price- and performancewise. A sibling of our EWS winning welded rims, the E 532 packs the materials and technology the worlds fastest racers use and puts it into an affordable rim for everyday chargers.
MATERIAL: ALUMINIUM
Â
| Model |
E 532 27.5 30 MM DB VI |
E 532 27.5 30 MM DB VI |
E 532 29 30 MM DB VI |
E 532 29 30 MM DB VI |
| Product Number: | RDE053BDPS28SA6278 | RDE053BDPS32SA6279 | RDE053CDPS28SA6280 | RDE053CDPS32SA6281 |
| NET WEIGHT: | 580g | 580g | 615g | 615g |
| RECOMMENDED SYSTEM WEIGHT MAX.: | 130kg | 130kg | 130kg | 130kg |
| ASTM CLASSIFICATION: | 4 | 4 | 4 | 4 |
| MATERIAL: | ALUMINIUM | ALUMINIUM | ALUMINIUM | ALUMINIUM |
| RIM JOINT: | Sleeve joint | Sleeve joint | Sleeve joint | Sleeve joint |
| TIRE INTERFACE: | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC |
| BRAKE INTERFACE: | Disc | Disc | Disc | Disc |
| RIM DIAMETER: | 27.5" / 650B | 27.5" / 650B | 29" / 700C | 29" / 700C |
| REFERENCE DIAMETER ERD: | 564mm | 564mm | 602mm | 602mm |
| INNER WIDTH: | 30mm | 30mm | 30mm | 30mm |
| OUTER WIDTH: | 35mm | 35mm | 35mm | 35mm |
| RIM HEIGHT: | 20mm | 20mm | 20mm | 20mm |
| NUMBER OF HOLES: | 28 | 32 | 28 | 32 |
| SPOKE BORE RIM: | Silver eyelet | Silver eyelet | Silver eyelet | Silver eyelet |
| VALVE HOLE: | Presta | Presta | Presta | Presta |
