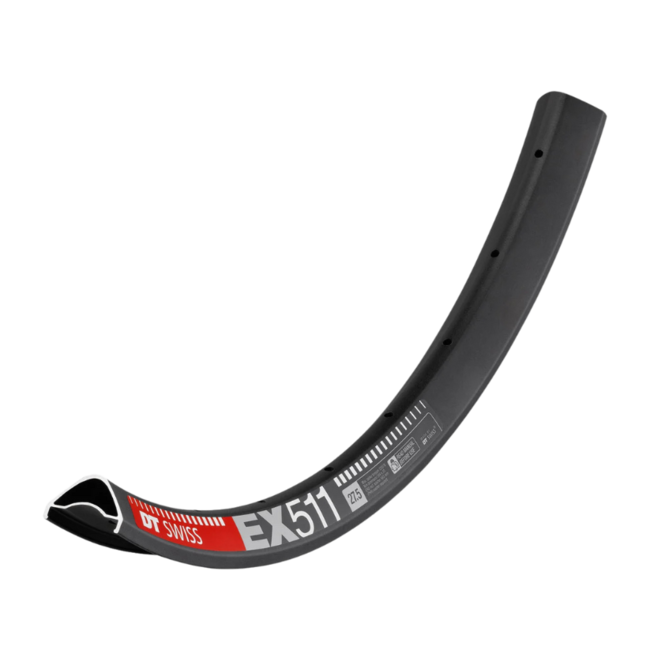

Enduro may be young as a discipline, but at its core is the intrinsic need of riders to ride burlier terrain faster and faster. Something that MTB was all about since the beginning. The EX 511 rim is the perfect tool for this quest: It comes with all the technology that has delivered many EWS wins and packs it in a 30 mm wide profile. Ready to go burlier, faster.
MATERIAL: ALUMINIUM
Â
| Model |
EX 511 27.5 30 MM DB VI |
EX 511 27.5 30 MM DB VI |
EX 511 29 30 MM DB VI |
EX 511 29 30 MM DB VI |
| Product Number: | RDEX5165028S011494 | RDEX5165032S011495 | RDEX51CDPW28SA6296 | RDEX51CDPW32SA6298 |
| NET WEIGHT: | 535g | 535g | 570g | 615g |
| RECOMMENDED SYSTEM WEIGHT MAX.: | 130kg | 130kg | 130kg | 130kg |
| ASTM CLASSIFICATION: | 4 | 4 | 4 | 4 |
| MATERIAL: | ALUMINIUM | ALUMINIUM | ALUMINIUM | ALUMINIUM |
| RIM JOINT: | Welded | Welded | Welded | Welded |
| TIRE INTERFACE: | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC | Tubeless crotched/Clincher TC |
| BRAKE INTERFACE: | Disc | Disc | Disc | Disc |
| RIM DIAMETER: | 27.5" / 650B | 27.5" / 650B | 29" / 700C | 29" / 700C |
| REFERENCE DIAMETER ERD: | 563mm | 563mm | 601mm | 601mm |
| INNER WIDTH: | 30mm | 30mm | 30mm | 30mm |
| OUTER WIDTH: | 35mm | 35mm | 35mm | 35mm |
| RIM HEIGHT: | 21mm | 21mm | 21mm | 21mm |
| NUMBER OF HOLES: | 28 | 32 | 28 | 32 |
| SPOKE BORE RIM: | Non eyelet PHR | Non eyelet PHR | Non eyelet PHR | Non eyelet PHR |
| VALVE HOLE: | Presta | Presta | Presta | Presta |
