Transfer parts from another bike or start from the ground up.

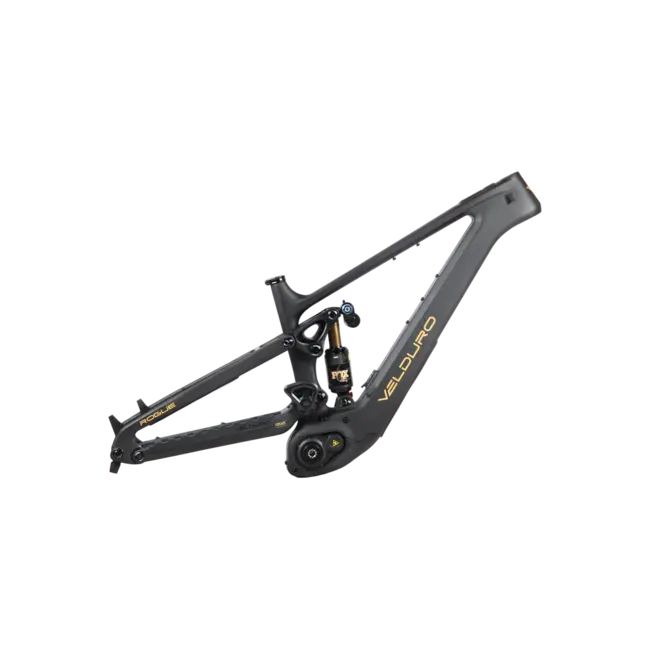

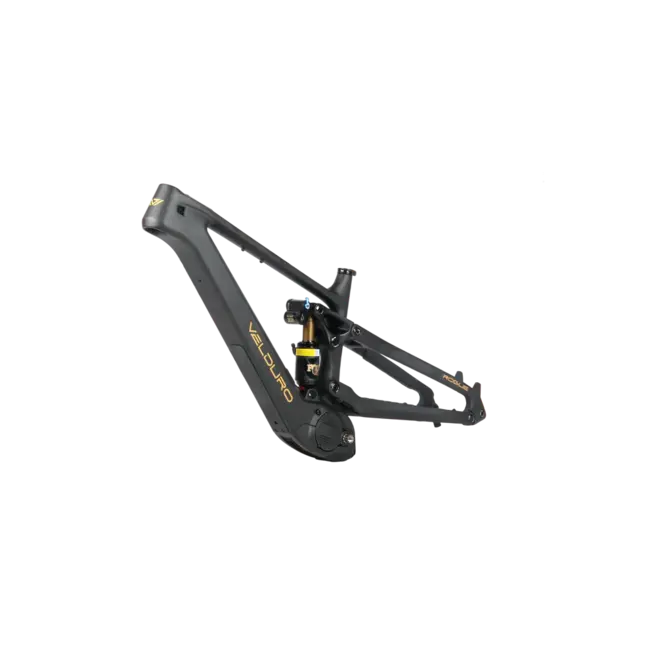

Carbon fibre, up to 172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

Avinox drive unit with a 800Wh battery, Avinox display.

BYO shock or add on a FOX FLOAT X2 Factory with a custom tune.

Frame: Carbon fibre enduro eMTB, mullet or 29", oversize bearings, 12x148 axle spacing

Headset: FSA No.57 44/56

Small parts included:

• headset
• rear axle
• UDH
• bottle cage bolts
• 34.9mm seat post clamp
• cable lugs
• trunnion bolts
• lower shock bolt
• cranks and 34T chainring

Note: Frames with shock come with the lower shock bolt and FOX shock specific lower eyelet mounting hardware.
Frames without shock come with the shock bolt but do not come with shock specific lower eyelet mounting hardware - you will need to obtain this to suit your chosen shock. The sizing is 30 x 8mm.

Shock Stroke and Flip Chip Options:

29" Rear Wheel

• 65mm stroke shock + STD flip chip = 167mm travel
• 65mm stroke shock + PRO flip chip = 172mm travel
• 62.5mm stroke shock + STD flip chip = 162mm travel
• 62.5mm stroke shock + PRO flip chip = 167mm travel

27.5" Rear Wheel

• 65mm stroke shock + STD flip chip = 165mm travel
• 65mm stroke shock + PRO flip chip = 170mm travel
• 62.5mm stroke shock + STD flip chip = 160mm travel
• 62.5mm stroke shock + PRO flip chip = 165mm travel

Cranks: Avinox ISIS 155mm

Chainring: *Included at no extra cost* Velduro steel 34T 104 BCD with mounting spider, lock ring and lock ring installation tool

Note:

The AXS power cable for powering an AXS derailleur from the bike is not included with the frame, this is a drivetrain component specific to AXS transmissions.

AXS setup: position A, 21T cog, 124 link chain.

The included chainring is SRAM flattop, SRAM 12 speed, Shimano 12 speed and Shimano Linkglide compatible. It will do all, but none of them perfectly. The perfect chainring for you is made to suit your drivetrain, this chainring gets you started because for some reason chainrings are hard to find sometimes.

Motor: DJI Avinox M2S 1300W 130Nm (150Nm boost)

Battery: DJI Avinox 36V 800Wh

Display: DJI Avinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

Speed sensor, cables, sensor ring: included

Note: The AXS power cable for powering an AXS derailleur from the bike is not included with the frame, this is a drivetrain component specific to AXS transmissions.
